SMA系列小型射頻同軸連接器
SMA MINIATURE RF COAXIAL CONNECTORS SMA 系列產品是一種應用廣泛的小型螺紋連接的同軸連接器，它具有頻帶寬、性能優、高可靠、壽命長的特點。適用于微波設備和數字通信系統的射頻回路中連接射頻電纜或微帶線。

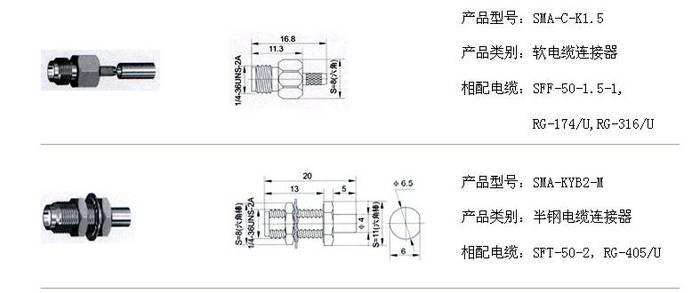

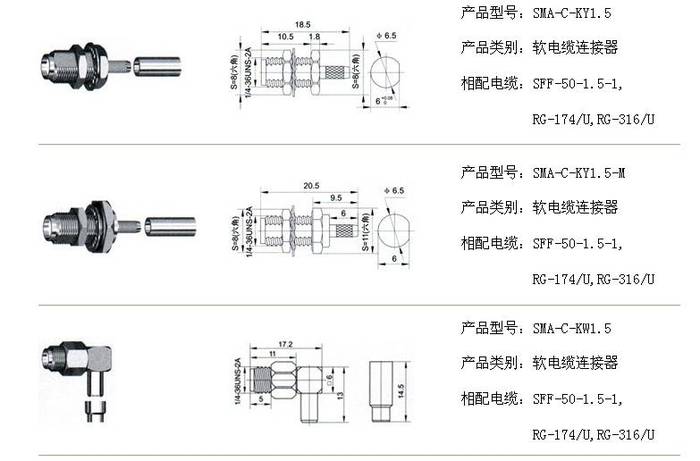

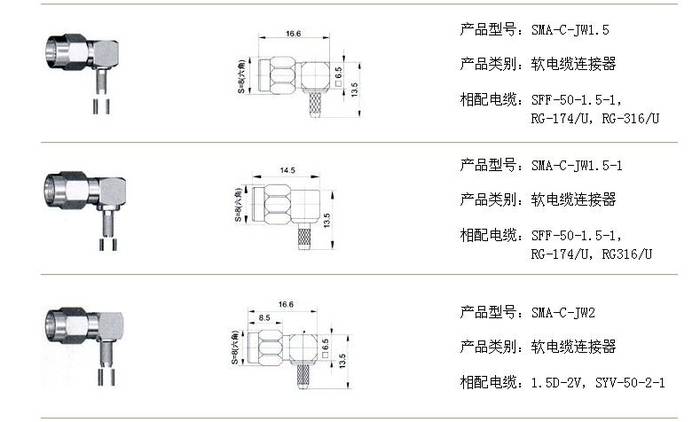

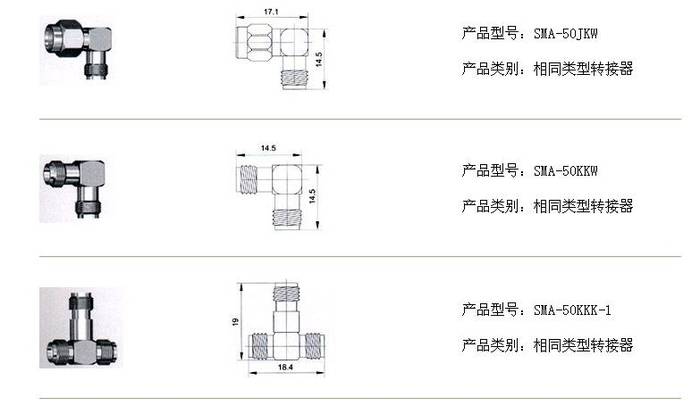

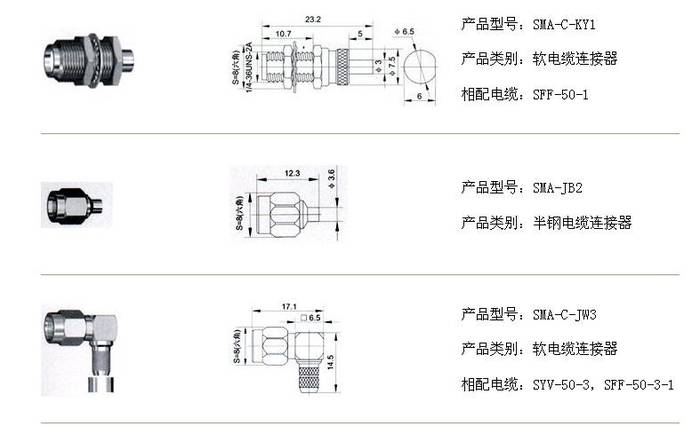

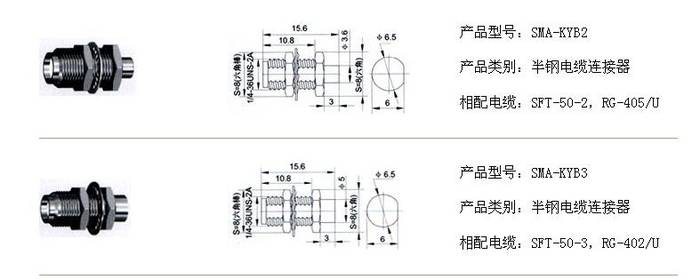

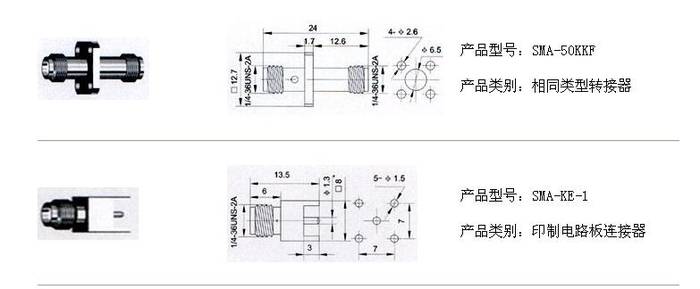

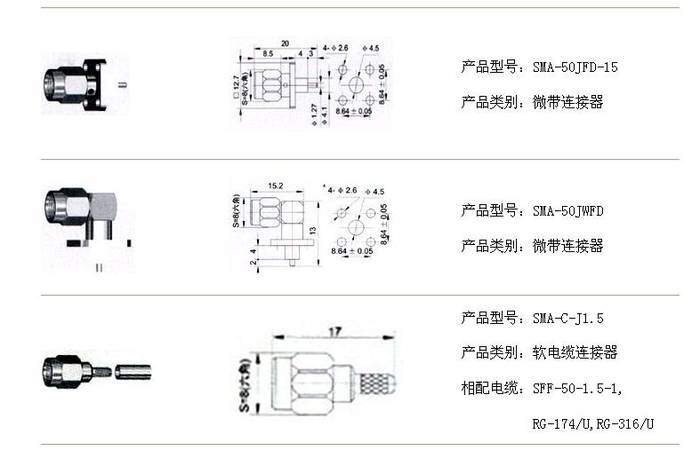

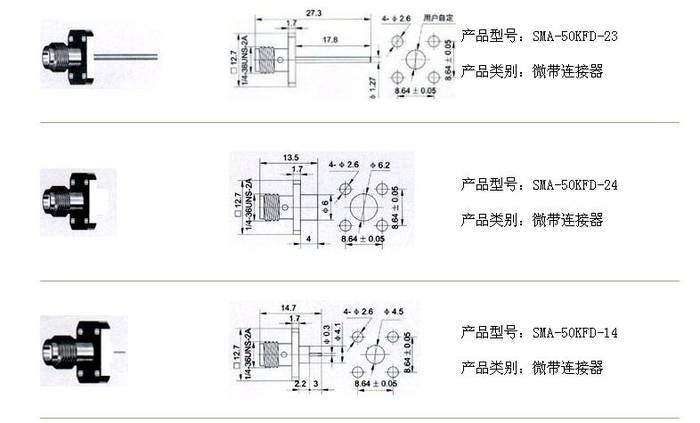

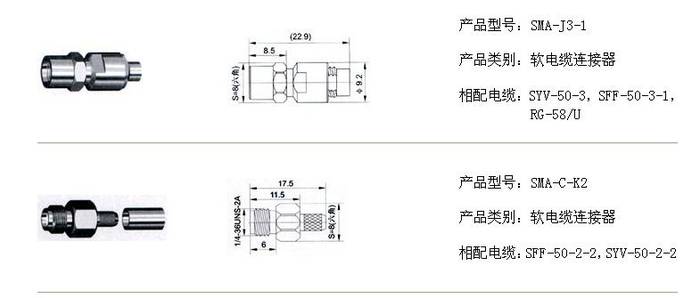

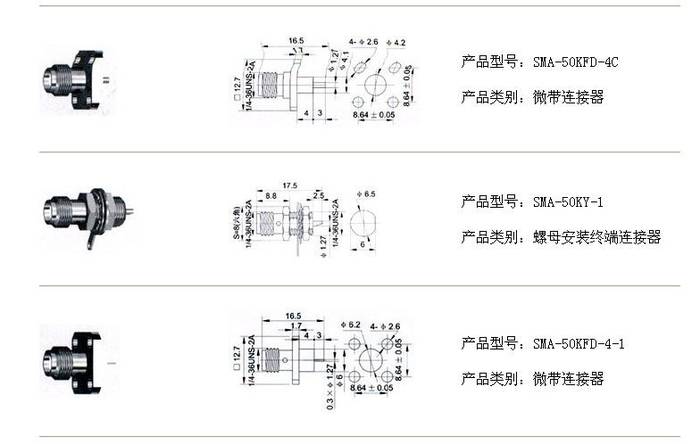

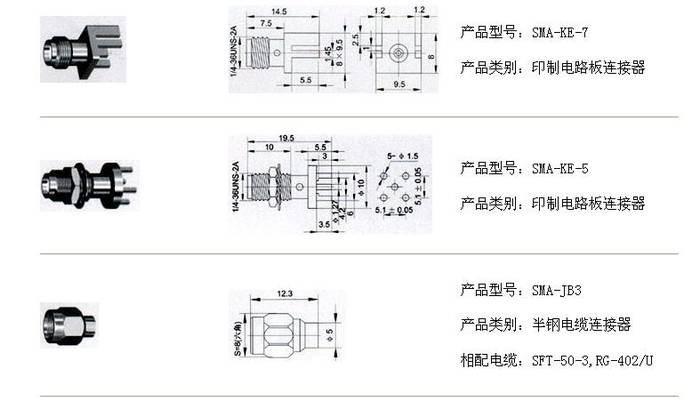

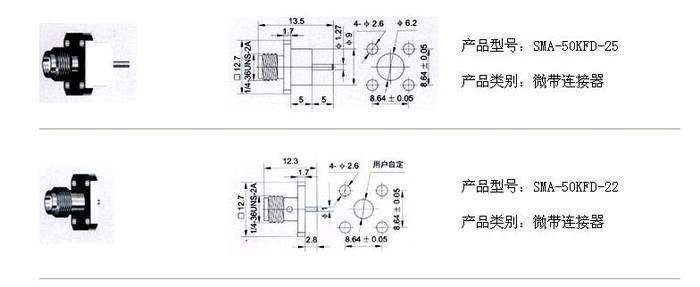

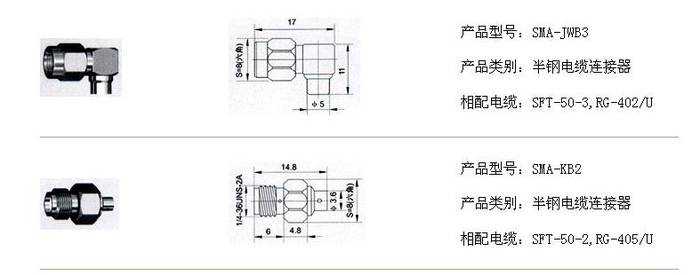

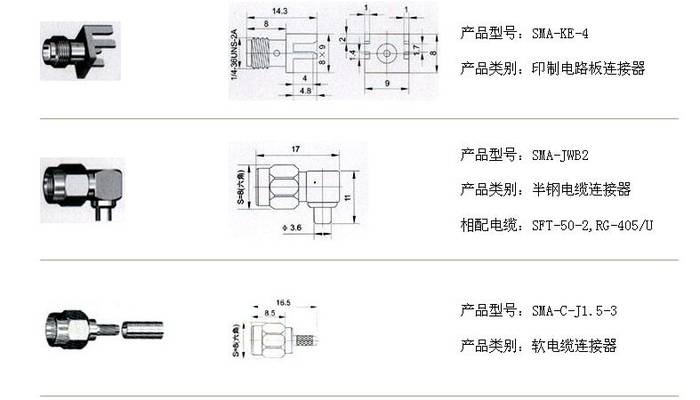

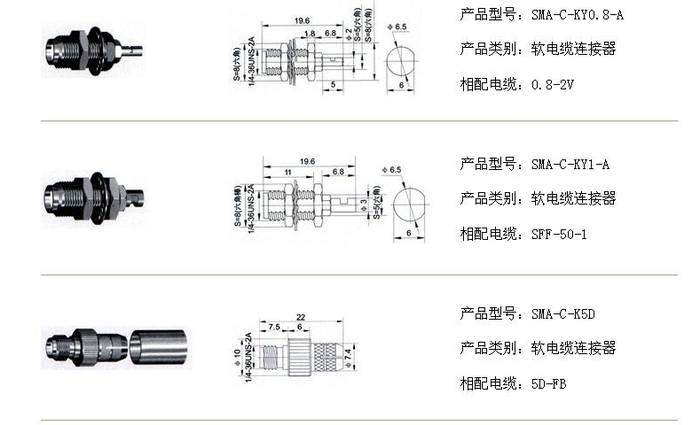

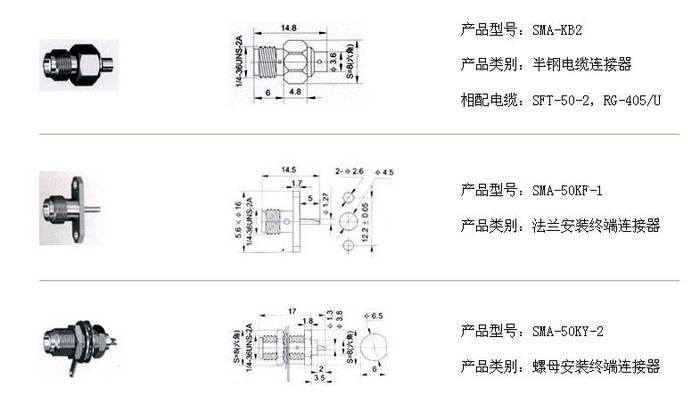

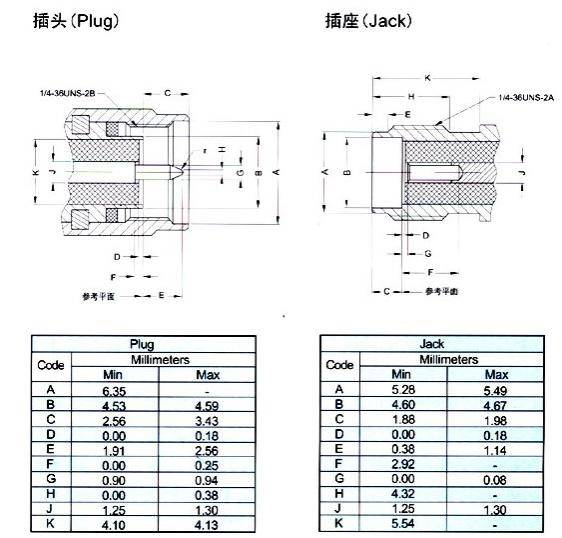

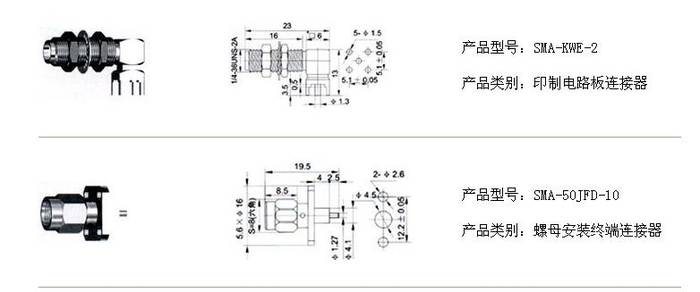

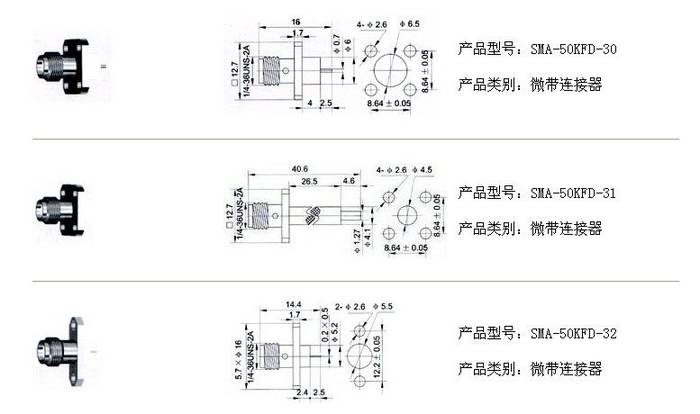

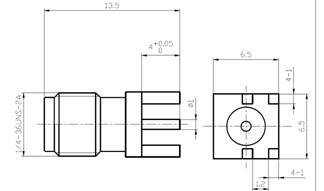

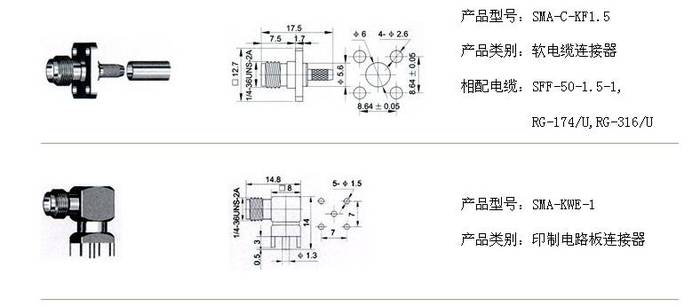

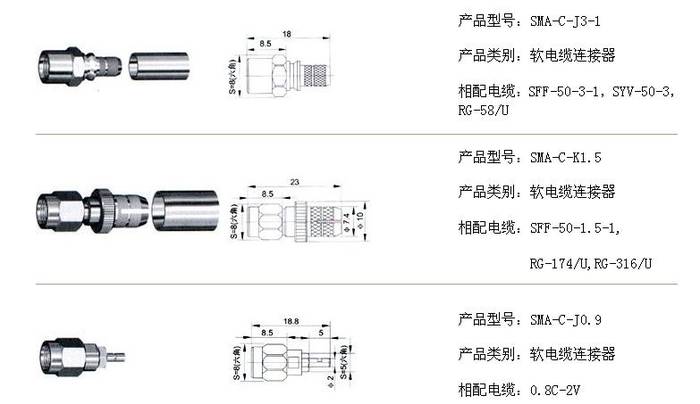

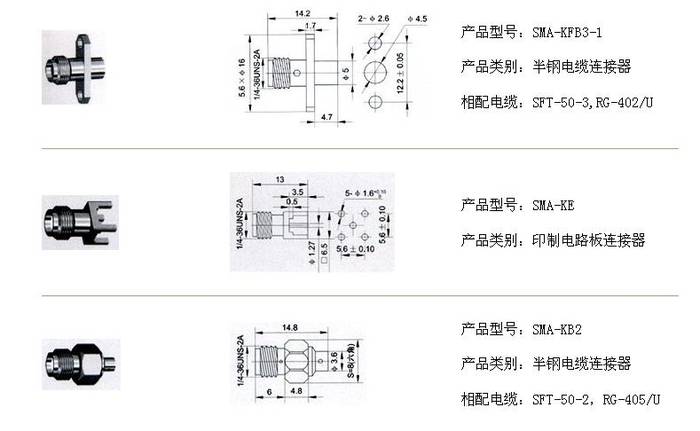

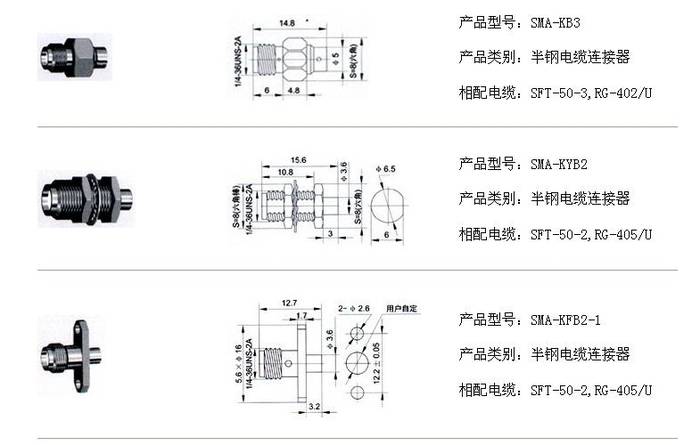

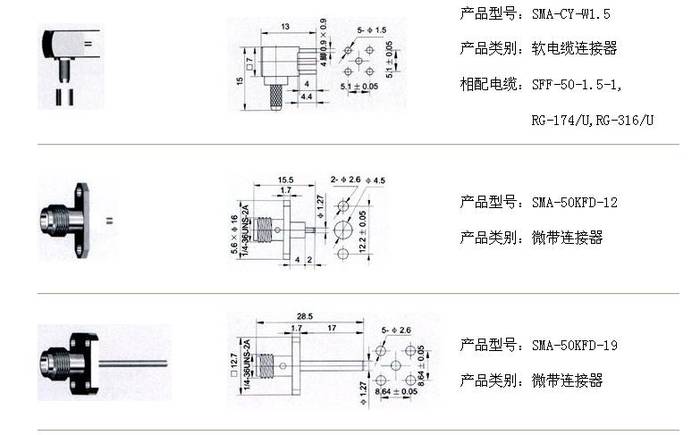

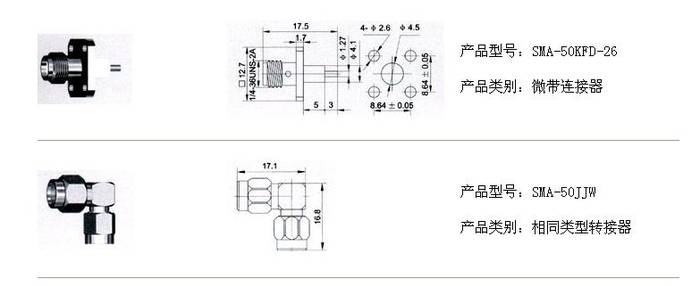

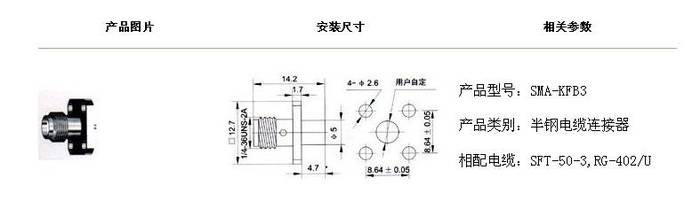

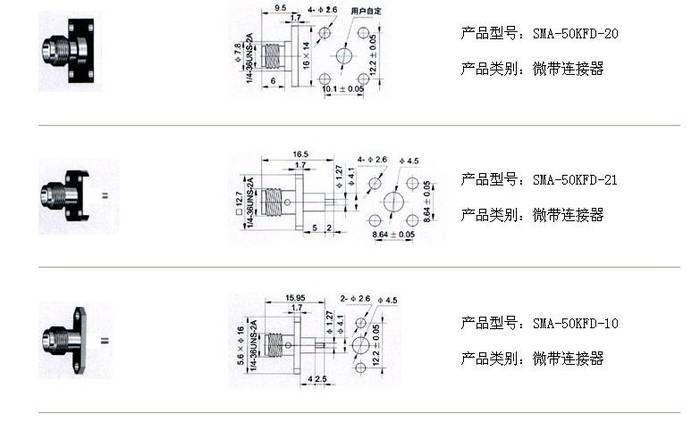

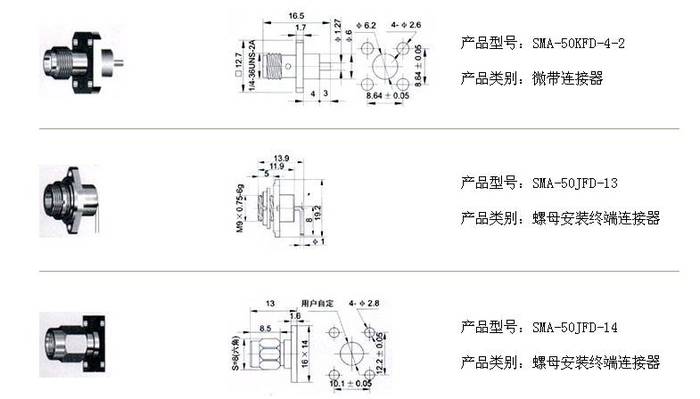

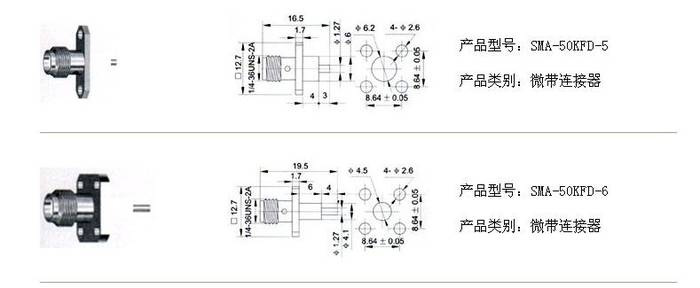

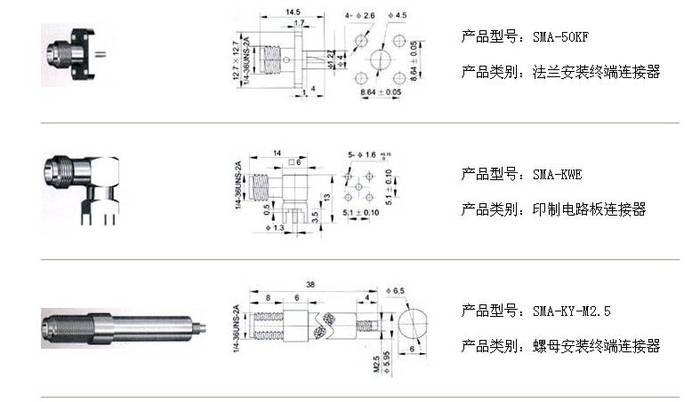

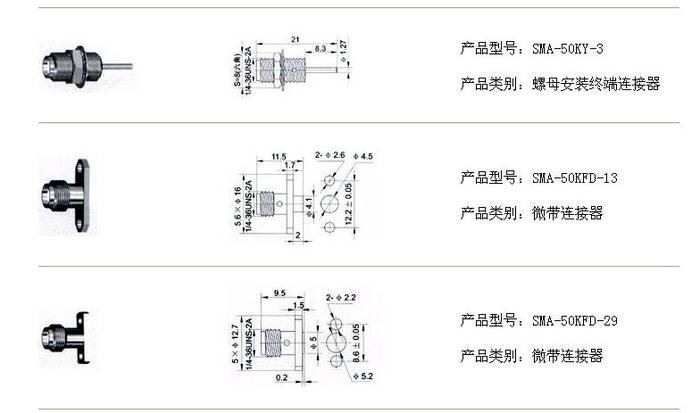

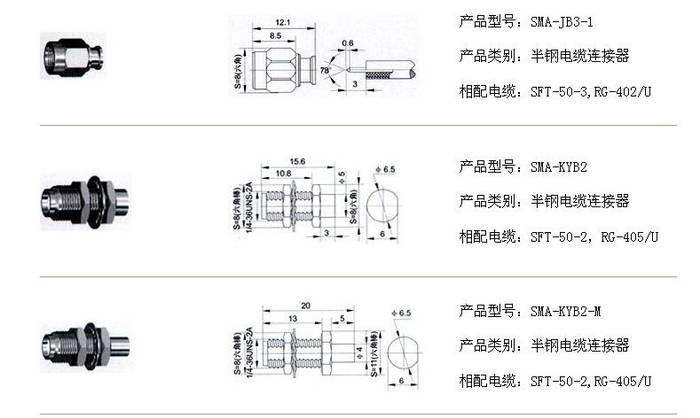

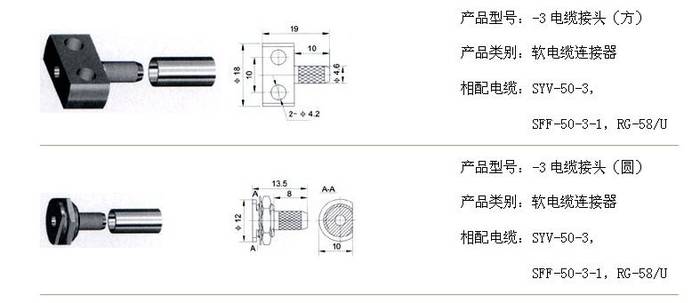

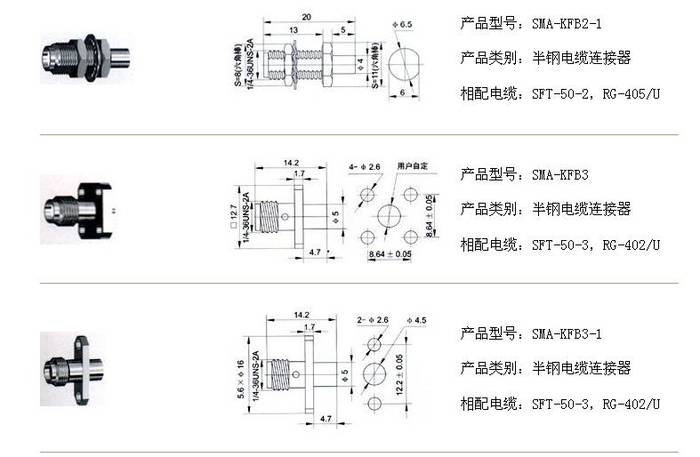

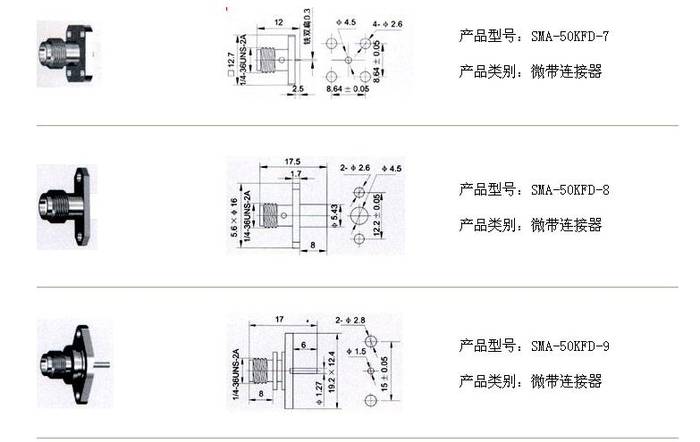

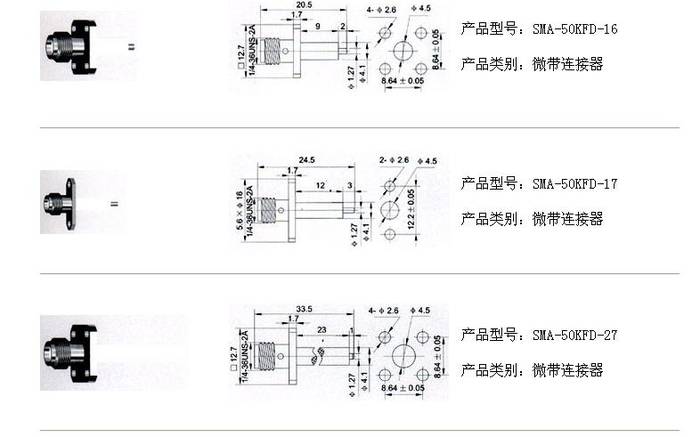

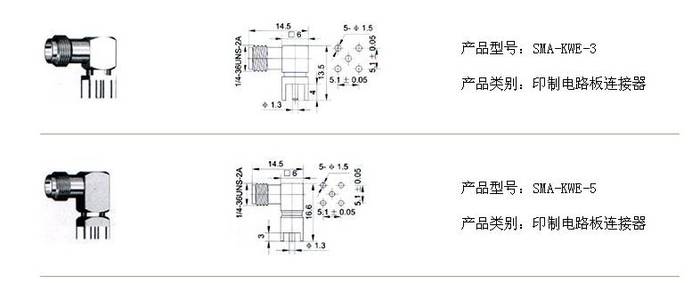

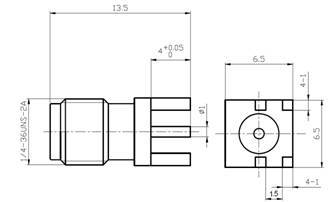

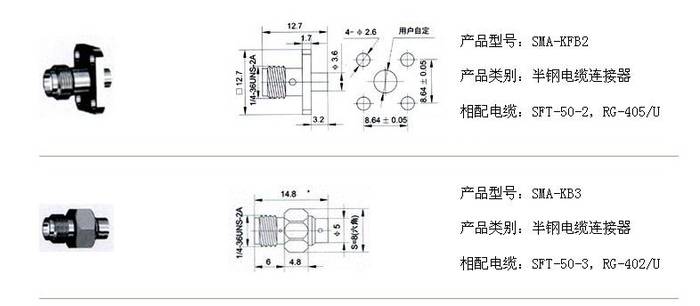

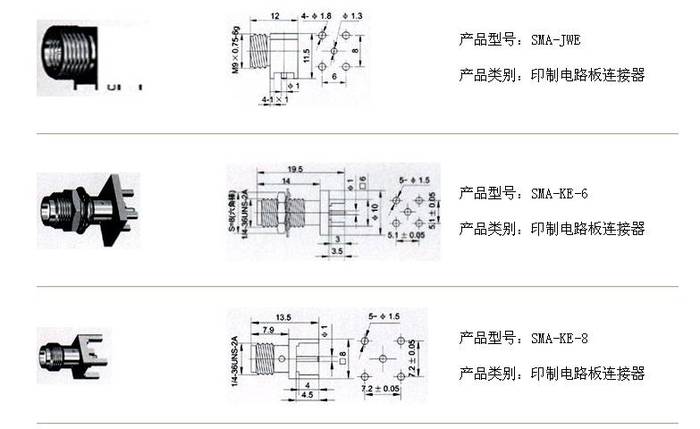

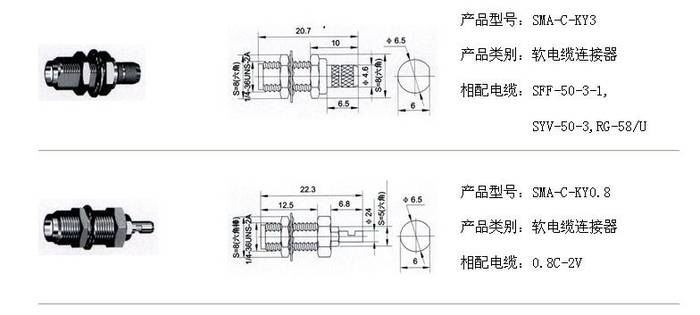

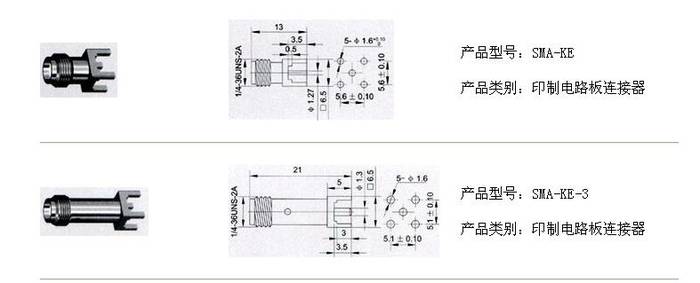

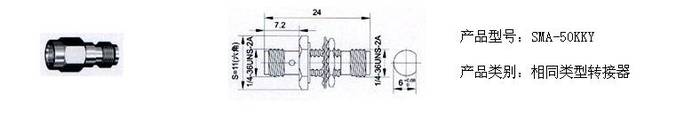

Series of SMA products one application extensive small-scale coaxial person who join that whorl join, it has a reliable characteristic with long life-span that the width, performance are excellent, high frequently. Suitable for the microwave equipment and body of the digital communication system and join the body in the cable or the micro-strip line frequently in the loop frequently. 界面尺寸 INTERFACE MATING DIMENSIONS
 主要技術特性 TECHNICAL CHARACTERISTICS
溫度范圍 Temp.range -65～+165°C (PE Cable? -40～+85°C) 振 動 Vibration MIL-STD-202,Method 213 特性阻抗 Impedance 50Ω 頻率范圍 Frequency Range DC～12.4GHz(半剛電纜 0～18GHz) 工作電壓 Working Voltage 335V max (有效值) 耐 壓 Withstand Voltage 1000V rms (海平面最小值) 接觸電阻 Contact resistance 內導體之間 Center Contact ≤ 3 mΩ 外導體之間 Outer Contact ≤ 2 mΩ 絕緣電阻 Insulation resistance ≥ 5000 MΩ 插入損耗 Insertion loss ≤0.15 dB/6GHz 電壓駐波比 VSWR 直式 Straight 軟電纜?? ≤1.10+0.002f 半剛電纜 ≤1.05+0.001f 彎 式 Right angles 軟電纜 ≤1.20+0.003f 半剛電纜 ≤1.10+0.001f 耐用性 Durability(mating) ≥500次 材料與涂覆 MATERIAL & PLATING
殼體 shell 黃銅 brass 鍍硬金 gold plated 插針 contact pin 黃銅 brass 鍍硬金 gold plated 插孔 socket 鈹青銅 beryllium 鍍硬金 gold plated 彈性接觸件elastic contact 鈹青銅 beryllium 鍍硬金 gold plated 絕緣體 insulator 聚四氟乙烯 PTFE 壓接套 crimping suite 銅合金 copper alloy 鍍鎳或鍍金 nickel or gold plated o型密封件o-ring sealing 硅橡膠6146 silastic 適用技術標準 APPLICABLE STANDARD
MIL-C-39012; CECC 22110; IEC 60169-15.
SMA系列小型射頻同軸連接器
SMA MINIATURE RF COAXIAL CONNECTORS SMA 系列產品是一種應用廣泛的小型螺紋連接的同軸連接器，它具有頻帶寬、性能優、高可靠、壽命長的特點。適用于微波設備和數字通信系統的射頻回路中連接射頻電纜或微帶線。

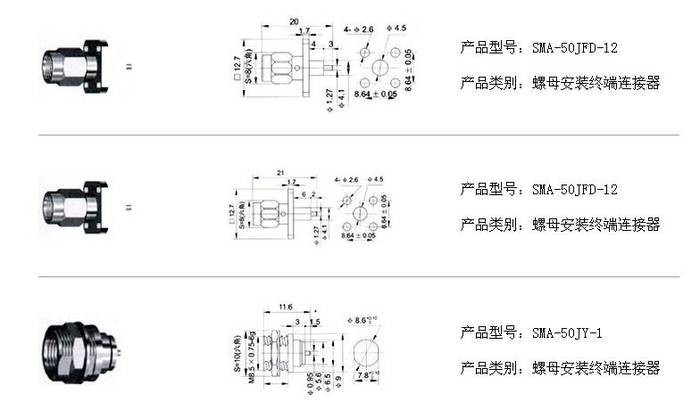

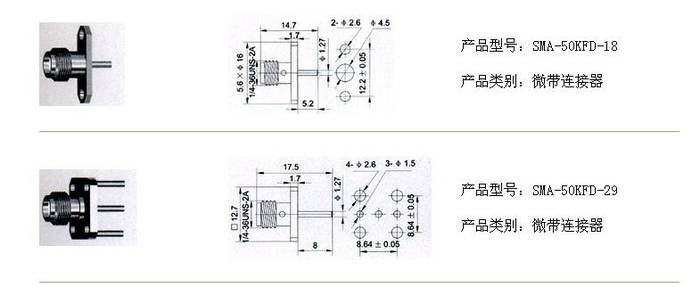

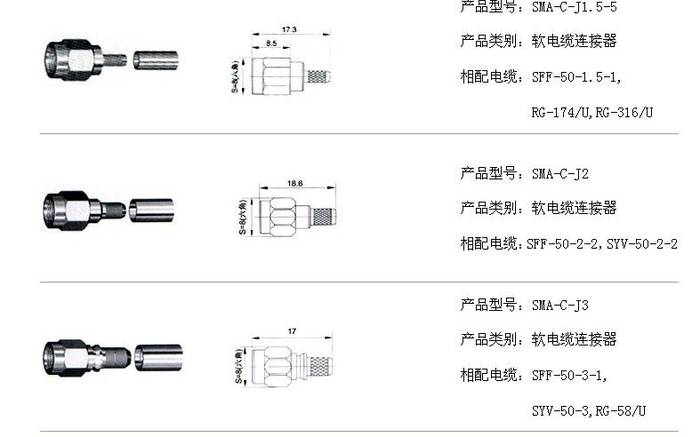

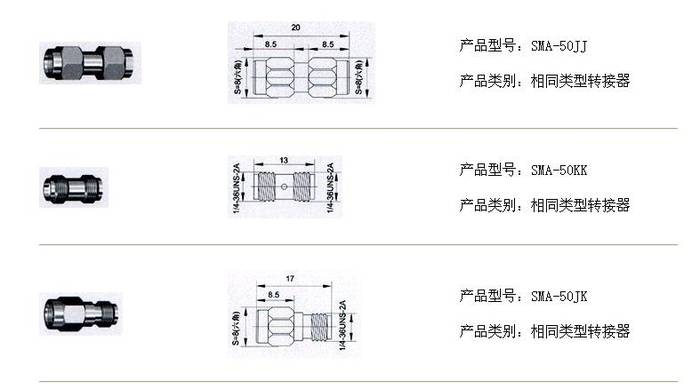

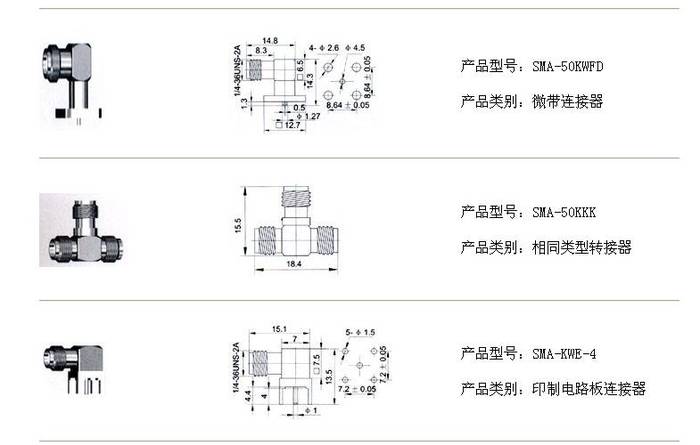

Series of SMA products one application extensive small-scale coaxial person who join that whorl join, it has a reliable characteristic with long life-span that the width, performance are excellent, high frequently. Suitable for the microwave equipment and body of the digital communication system and join the body in the cable or the micro-strip line frequently in the loop frequently. 界面尺寸 INTERFACE MATING DIMENSIONS
主要技術特性 TECHNICAL CHARACTERISTICS
溫度范圍 Temp.range -65～+165°C (PE Cable? -40～+85°C) 振 動 Vibration MIL-STD-202,Method 213 特性阻抗 Impedance 50Ω 頻率范圍 Frequency Range DC～12.4GHz(半剛電纜 0～18GHz) 工作電壓 Working Voltage 335V max (有效值) 耐 壓 Withstand Voltage 1000V rms (海平面最小值) 接觸電阻 Contact resistance 內導體之間 Center Contact ≤ 3 mΩ 外導體之間 Outer Contact ≤ 2 mΩ 絕緣電阻 Insulation resistance ≥ 5000 MΩ 插入損耗 Insertion loss ≤0.15 dB/6GHz 電壓駐波比 VSWR 直式 Straight 軟電纜?? ≤1.10+0.002f 半剛電纜 ≤1.05+0.001f 彎 式 Right angles 軟電纜 ≤1.20+0.003f 半剛電纜 ≤1.10+0.001f 耐用性 Durability(mating) ≥500次 材料與涂覆 MATERIAL & PLATING
殼體 shell 黃銅 brass 鍍硬金 gold plated 插針 contact pin 黃銅 brass 鍍硬金 gold plated 插孔 socket 鈹青銅 beryllium 鍍硬金 gold plated 彈性接觸件elastic contact 鈹青銅 beryllium 鍍硬金 gold plated 絕緣體 insulator 聚四氟乙烯 PTFE 壓接套 crimping suite 銅合金 copper alloy 鍍鎳或鍍金 nickel or gold plated o型密封件o-ring sealing 硅橡膠6146 silastic 適用技術標準 APPLICABLE STANDARD
MIL-C-39012; CECC 22110; IEC 60169-15.
|
 |
|
 |
