1.0/2.3(CC4)系列射頻同軸連接器
SERIES RF COAXIAL CONNECTORS

1.    0/2.3(CC4)型產品廣泛用于小型化的無線電通訊設備,數字式配線裝置,滑入機架,積木單元及各類數據監管系統.其特點是體積小、重量輕、連接方便、性能可靠、耐振動、抗沖擊，有自鎖裝置。
1.0/2.3(CC4) type products apply to radio communication apparatus of miniaturization is digital to buy the line device extensively, Slipping into the framework, building blocks unit and all kinds of data supervise the system. Its characteristic is small, light, joins helping, performance is reliable, able to bear vibration, resists and is assaulted , Have lock device since.

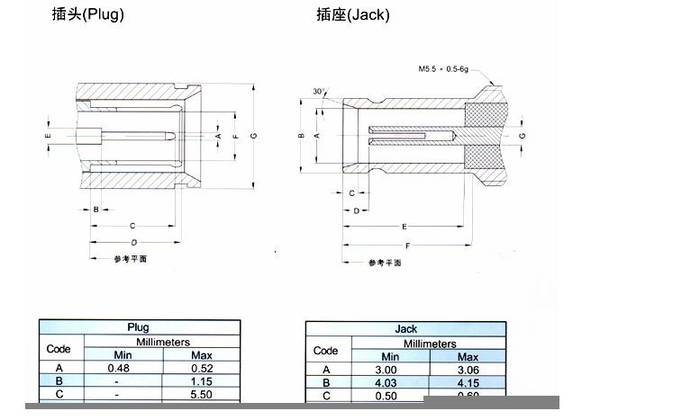

界面尺寸 INTERFACE MATING

ENSIONS
主要技術特性 TECHNICAL CHARACTERISTICS

溫度范圍 Temp.range -40°C～+85°C
振 動 Vibration 100m/s2 (10～500Hz)
特性阻抗 Impedance 50Ω,75Ω
頻率范圍 Frequency Range DC～4GHz (50Ω); DC～1GHz (75Ω)
工作電壓 Working Voltage 350V max (有效值)
耐 壓 Withstand Voltage 750V rms (海平面有效值)
接觸電阻 Contact resistance
內導體之間 Center Contact ≤ 6 mΩ
外導體之間 Outer Contact ≤ 3 mΩ
絕緣電阻 Insulation resistance ≥ 1000 MΩ
電壓駐波比 VSWR 直式 Straight ≤ 1.20
彎式 Right angle ≤ 1.22
耐用性 Durability(mating) ≥500次

材料與涂覆 MATERIAL & PLATING
殼體 shell 黃銅 brass 鍍鎳或鍍金 nickel or gold plated
插針 contact pin 黃銅 brass 鍍硬金 gold plated
插孔 socket 鈹青銅 beryllium 鍍硬金 gold plated
彈性接觸件elastic contact鈹青銅或錫青銅beryllium or tin brass 鍍硬金 gold plated
絕緣體 insulator 聚四氟乙烯 PTFE
壓接套 crimping suite 銅合金 copper alloy 鍍鎳或鍍金 nickel or gold plated
o型密封件o-ring sealing 硅橡膠 6146 silastic

適用技術標準 APPLICABLE STANDARD
CECC 22230;
DIN 47297.

2230;
DIN 47297.
